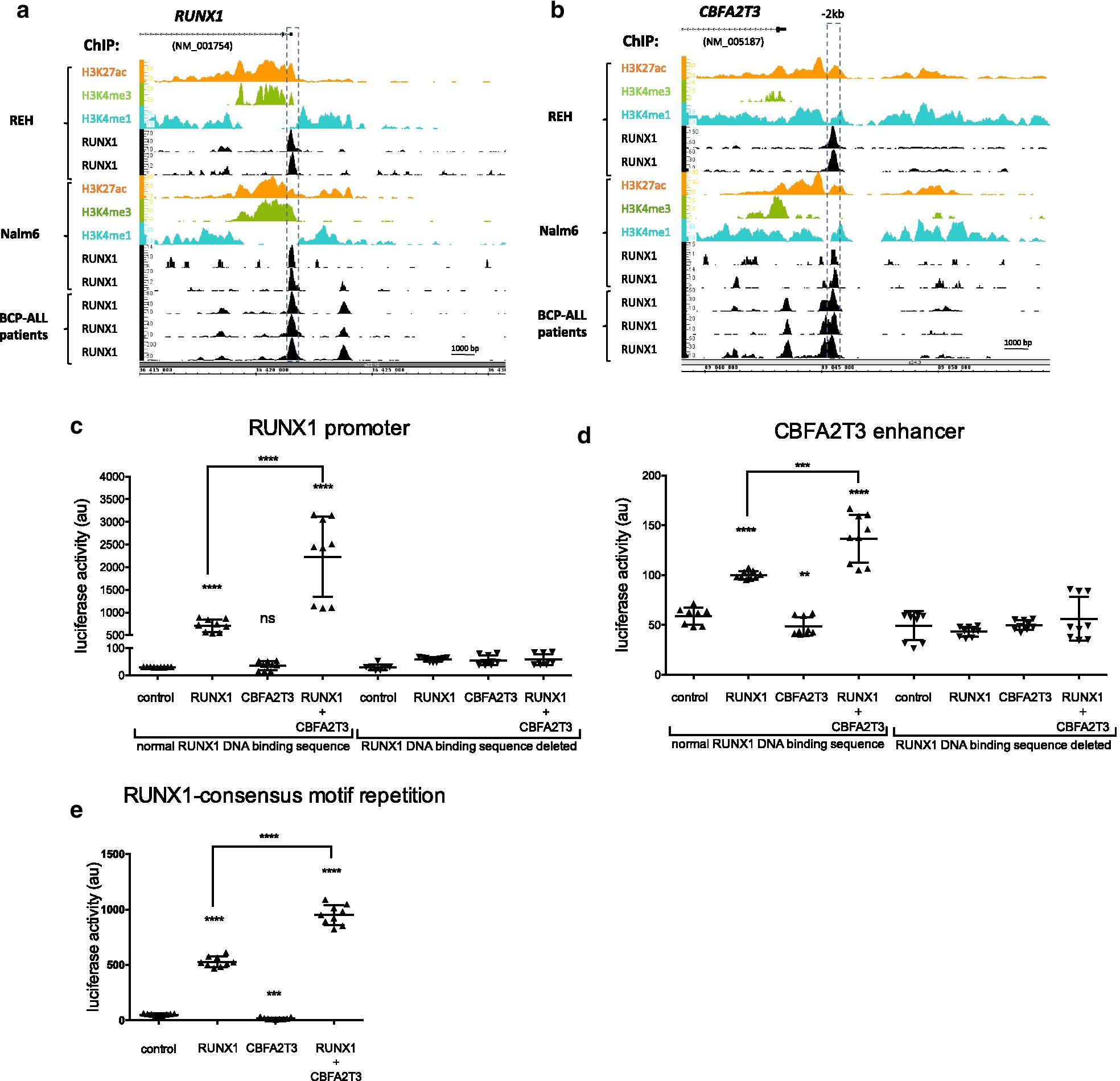

Fig. 2

RUNX1 and CBFA2T3 interplay for their transcription. a and b ChIP-Seq profiles across the human RUNX1 (a) and CBFA2T3 (b) genes. Genomic tracks display ChIP-Seq profiles of RUNX1 from REH cells, Nalm6 cells and BCP-ALL patients, and of the histones H3K27ac, H3K4me3, and H3K4me1 from REH and Nalm6 cells. RUNX1 ChIP-Seq from bone marrow mononuclear cells isolated from three pre-B acute lymphoblastic leukemia patients (BCP-ALL) are also displayed. ChIP-Seq reads were aligned to the reference human genome version GRCh37 (hg19). Each genomic regions of RUNX1 and CBFA2T3 genes that are subsequently studied are indicated by boxes. c–e Luciferase assays with a plasmid containing the RUNX1 promoter (chr21: 940,581–940,336(C), CBFA2T3 enhancer (chr16:89,045,181–89,045,538) (D) and a repetition of RUNX1-consensus motif (E) upstream a minimal promoter and a luciferase ORF, in presence of RUNX1 and CBFA2T3 expressing plasmids in HEK293 cells. Note that the HEK293 cells do not endogenously express RUNX1 and CBFA2T3. Luciferase levels (Firefly luciferase/Renilla luciferase) are represented using a scatter dot plot indicating the means and S.D. NS: non-significant, **p < 0.01, ***p < 0.001, ****p < 0.0001 in Mann–Whitney tests compared to the control condition
